Retrofit Anchors

Cement Based Carbon Fiber Anchor for FRP & FRCM Systems

by

Cintec designs an anchor for both FRP and FRCM (RureGold) based Systems with their sock/cement technology. Works just as well with resin systems with guaranteed pullout, easy to install and fireproof. Installs with battery operated bulk cement caulking gun. Based on proven sock/cement by Cintec, used industry wide for almost 50 years. Engineered for the engineer, constructed for the contractor.

Same technology when used with threaded stainless steel rod in lieu of carbon fiber rope is ideal for CMU and Speed Tile thin wall sections providing maximum pullout and shear.

FRP Anchor

HeliFix PatchPin

by

After completing a recent parking garage that used over 30,000 HeliFix PatchPins with the contractor eventually saying “I wouldn’t use anything else!” I wondered how many of my concrete repair contractors are still spending $4-7/pin using the old resin and threaded rod method compared to about $2 installed for the PatchPin. Please confirm or dispute my numbers but watch the “17 second” installation video and consider – time to install, no waste of plastic or epoxy, use 1 or 10,000 at a time, NO CLEANING OF THE DRILL HOLE, it’s a DryFIx!, carry a days supply IN YOUR POCKET, bend easily as required, tie SS wire as needed. Think about it.



MASONRY RESTORATION/STRENGTHENING SOLUTIONS

by

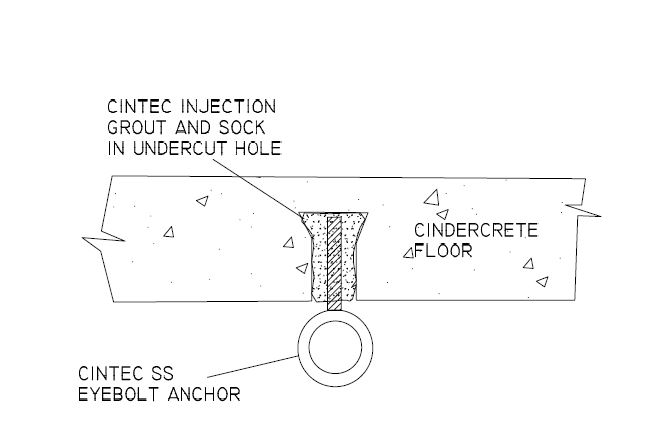

Have any masonry restoration or strengthening situation that you might need an alternative or even primary solutions for? With one email, whether you are a contractor or an engineer days, weeks, months or even years could be cut off solving the problem. I have the horror stories that have in fact lasted years. It’s only an email, what have you got to lose. pjm@conspec-rep.com – Cindercrete weak, Drop Ceiling requires 1000# ultimate pullout, for example.Ceiling Anchor

Anchorage Fixing for Hollow Core Plank

by

Cintec AnchorsHollow Core Plank – Retrofit anchor solutions. It has been over 12 years where one project in NYC had hollow core plank specified on 5000PSI CMU block walls. Problem was the job was built with 3000psi CMU resulting in compression failure of the brick at every floor line. In lieu of tearing down the structure we supplied custom Cintec anchors to allow the reskinning of the brick after we strengthen the connection for the plank to the block. Attachment to brick, CMU Block, Speed Tile or even steel is a typical application.

Fire Resistance/Concern for Anchors

by

ENGINEERS, PLEASE CONSIDER THE FOLLOWING – I just spoke with a national anchor testing lab. They told me that to get the test anchors out of the concrete, THEY USE A TORCH! Think about it. Ever wonder why resin anchors aren’t allowed over 6 stories in the UK, something else to think about.

Firte Resistance

GROZNY, RUSSIA. APRIL 3, 2013. A fire at a 145-meter-high building in Chechnya’s capital Grozny. This is the Olympus (Olimp) Tower in the Grozny City compound. (Photo ITAR-TASS / Murat Kazbekov)

When New Construction Turns Into Restoration

by

Cintec while primarily used as a retrofit high capacity cement based fireproof anchor is rarely considered for new construction so most designers are not familiar with the 50 year track record of this system. However when there is a deficiency in new construction or an anchor fails, it them, by definition, becomes a restoration project. The problem now becomes, most structural engineers are not restoration/adaptive engineers and are not familiar with this type of retrofit solution. It is however a common solution in the restoration, stabilization, strengthening community. Please reach out to www.cintec.com or our site www.conspec-rep.com for your repair/restoration needs.

Cintec Socked Anchor

CINTEC – Better, Faster, Cheaper?

by

What is the difference between a restoration engineer who specifies Cintec and one who doesn’t? This project on 5th Avenue in New York City needed a repair and an anchor for only this one piece of terracotta. The photo shows the preparation for the repair and the hole in the face of the terracotta piece that will accept the Cintec anchor. The engineer who considers Cintec a go to solution will use it on a project like the Helmsley Building where there are hundreds of substantial 2-4 foot anchor or on a project where there is only one anchor. If you do not specify or install Cintec please consider both your options and installed cost to solve this problem.
For those that use and specify Cintec they get it, for those aren’t they really DON’T GET IT. Not only is there less insult to the structure but the cost to the owner is substantially less and it is a truly sustainable solution. Think about it on your next project.

What makes a Structural Engineer a Restoration Engineer?

by

“MATERIAL(S)”

It is the structural engineer who has a true understanding of the materials within the Built Environment when approaching a restoration project and can cause the least insult to those materials that is the true Restoration Engineer.

Consider the Acronym “SIP vs ROAR” (Stabilize-In-Place vs Rip-Out-And-Replace) as it relates to;

  • Cost to the material of the structure
  • Cost to the environment with removal rather than stabilization
  • Cost to the owner
  • Time extension for completion
  • Inconvenience to occupants
  • Aesthetics
  • Encroachment on adjacent properties
  • Additional support structures during restoration
  • And the list goes on!

Before our BOMA members pick their Engineer for the next LL11 Cycle think about asking the following two questions to you prospective engineer.

  1. Do flexible wall ties need to be replaced with more flexible wall ties during a restoration where they are found deficient and ask for reasoning for either response? Are rigid ties acceptable?
  2. Your building is in Manhattan and your parapet shows signs of distress. Which one, two, three or all of the following typically face the most distress; 78th Street side, 77th Street side, Madison Avenue side or Park Avenue side?

Europe has been training restoration engineers both in school and on the job for more years than our country has existed. While there are currently several efforts underway by engineers like Michael Drerup to establish graduate programs here in the United States we are only recently beginning that effort so most restoration engineers trained here in the US are validated by their time in the field. If your potential engineering firm does less than 50 percent of their work in restoration you may want to reconsider. It is not the building’s they have built, rather the buildings they have saved.
