Tradition, Technology, Innovation

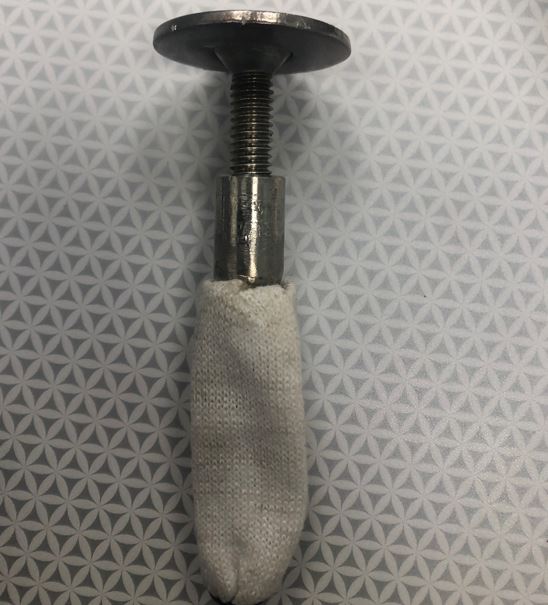

Cintec Cement Based Socked Anchors can be any length, any steel size, including tubular, round or square, installed at any angle, including overhead and provide a FIREPROOF anchor, especially important in the case of fire in Cavity Walls. Penetration of Steel beams or columns for attachment of any material, including stone and terracotta of any size or weight, only dependent on the substrates ability to support it.
CINTEC PROVIDES CALCULATIONS TO THE EOR, STRUCTURAL ENGINEER.
No matter what your Terracotta, Brownstone or Limestone replacement needs are CastCotta is now available, with a six week delivery schedule and an unlimited number of glazes to satisfy your next project.
Socked based cement anchors, whether HeliFix or Cintec, are easier to install than resin anchors with almost no waste compared to resin anchors and are fireproof. Installation shown is using plastics inserts for a battery operated bulk cement gun but can be used with just a regular battery or even air operated gun using no sleeves and just filling the tube itself. For high volume projects or long anchors, a pressure pot can be used to facilitate the larger volumes and for the greatest efficiency a peristaltic, continuous feed pump is ideal.
PORTABLE CEMENT BULK GUN
PRESSURE POT
PERISTALTIC PUMP
When fixing a window in a rubble wall which has inconsistent infill many time mechanical and even resin anchors will nor perform well or consistently. It is in these conditions where a cement based socked anchor provides the ideal solution to cover any voids or cavities. Even in Speedtile or CMU walls this system provides maximum anchorage in a fire rated anchor and is easily installed.
First we had stone, then we had Terracotta with over 100 plants in the US alone, now there are only three, two in the US and one in the UK suppling primarily replacement units.
Consider the next transition is CastCotta, a cast unit, that has the decorative capabilities of Terracotta but is as easy to use as a CMU, with all the textures, shapes and glazes we have come to know, with similar ease of installation. CastCotta is identical in Form and Function to Terracotta, is 40% lighter than Terracotta and 80% lighter than precast. Architects, please consider the possibilities not only for replacement but primarily New Construction accent pieces. Other items including Brownstone, Limestone Granite and others are possible with CastCotta. CastCotta can provide this transition.
Contractors, with a 6 week delivery get your project back on schedule and consider CastCotta for your current or future projects.
When SGH needed to stabilize the Gaustavino Tile Domes at the First Church of Christ Scientist they chose RureGold a masonry sympathetic Carbon Fiber to do the job. Grande Masonry appreciated the ease of application compared to the resin materials they had used in the past.
Conspec has represented StoneArt for some 20 years and as a result has satisfied both Landmark and private clients throughout the Northeast for that time. Any color, any shape, any texture , any size, any quantity, glaze finish or other never a problem. Clients include the NYC SCA, Rockefeller University and the list goes on.

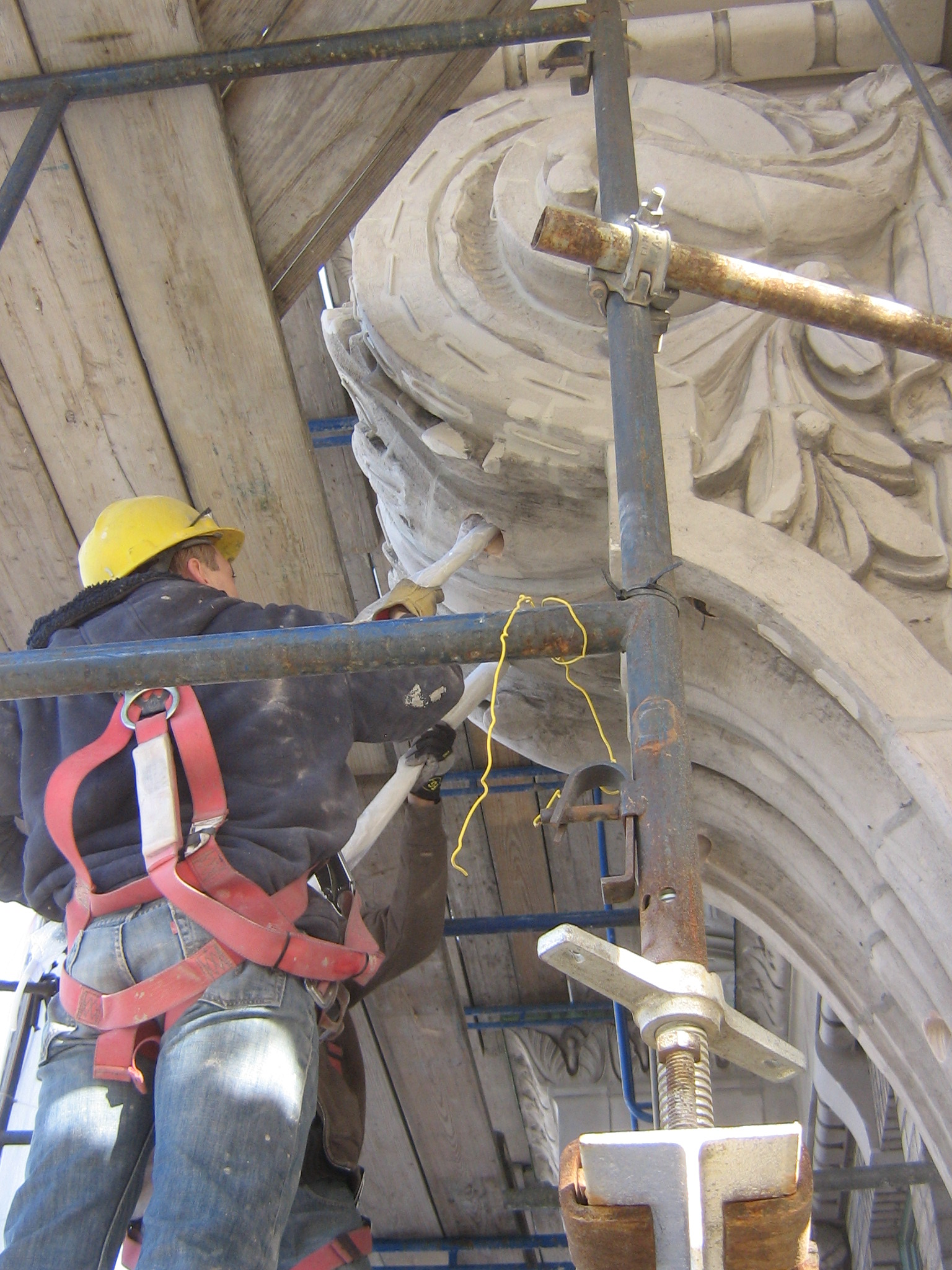

When Thornton Tomasetti had to consider the condition and stability of the terracotta for the Helmsley Building at 230 Park Avenue, including ornate Buffalo Heads, ConSpec’s SIP vs ROAR concept proved appropriate with the replacement of pieces that were beyond repair (Rip-Out-And-Replace) but anchor (Stabilize_In-Place) with Custom Designed Cintec anchors to dramatically reduce overall costs and project completion time.
When all local traditional methods for stabilization of the brick structures at Angkor Wat had been exhausted. ConSpec was consulted by the Conservator based on our knowledge and representation of numerous masonry stabilization and strengthening means, methods and materials. To provide the most effective and least intrusive solution we traveled to the site and installed the HeliFix DryFix anchors for their review.
FACT – Place a dense material such as Portland Cement Stucco/System over a more permeable substrate such as brownstone or even worse, masonry, and FAILURE is guaranteed. As the moisture attempts to exit the building in the colder months, when it hits the interface, by definition, water has to build up at the denser interface so with freeze/thaw the weaker of the two has to fail and delamination occurs. If it is latex or resin modified the process is only accelerated.
This holds true whether it is a Brownstone re-skin or a Portland Cement based FRCM. While great for concrete, if you value your masonry please take this into consideration on your next masonry stabilization or strengthening project. Use of a material such an an inorganic cement which is made to be sympathetic to masonry substrates is always preferred.
